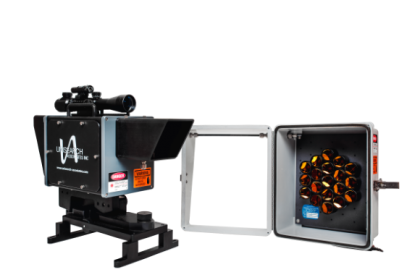

LasIR™ Laser-based Fence Line Gas Monitor for Emissions Monitoring

Characteristics

Laser

Near IR tunable diode laser Telecommunication grade lasers for longevity, reliability and availability

Detection Limits

sub-ppmv to % levels depending on species and application.
Consult the factory for your specific application.

Calibration

Factory Test results sent with every unit Internal reference cell, external portable audit module, or in‐line flow through cell

Dynamic Range

5 orders of magnitude

Data Storage

Internal storage & External storage via Ethernet, RS232 or MODBUS-TCP/RTU

Dimensions

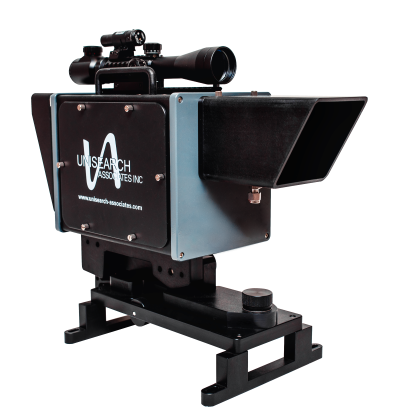

Open Path Telescope:
7"(W) x 10"(H) x 14"(L)
Retro-Reflector:
12"(W) x 12”(H) x 8"(D)

Response Time

< 1 second

Environment Conditions

‐10°C to +50°C,
5 – 100% RH,
800 – 1,200 mbar

Outputs and Networking

Up to thirty-two 4‐20 mA Analog Outputs, Ethernet, MODBUS-TCP/RTU, RS232, Six Dry-Contact NC & NO Status Relays

Data Logging and Displaying Software

LasIRView (with Data Review and Statistical Analysis)

Power Supply

+12 VDC; 1A
(100 – 240 VAC @50‐60Hz to +12 VDC adapter supplied)

Unisearch LasIR^TM Gas Analyzer is a continuous monitor designed to measure open path both compliance The Controller uses a near infrared (NIR) Tunable Diode Laser Absorption Spectrometer System utilizing a single mode laser mounted in a thermoelectric cooler for unsurpassed accuracy and performance. Since the spectral purity of the laser is high and the selected absorption feature is unique, measurements can be made free of interferences from any other gas. A Windows based software package displays the data on either a Host laptop PC or the client’s existing data acquisition system.

Features & Benefits

TDL (Tunable Diode Laser) technology for unmatched accuracy & reliability
High sensitivity ppb to percent level measurements

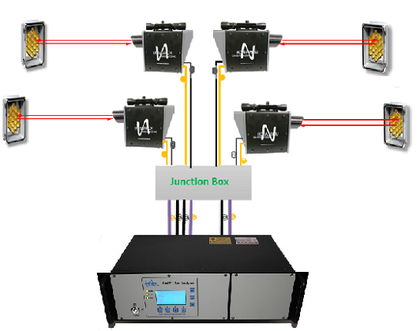

One analyzer can be used for up to 16 measurement points
Moisture can be added as a second channel for many species
Multi-component measurements are available for certain species, i.e. CO/CO₂, NH₃/HCN, CH₄/C₂H₆, H₂S/CO₂/H₂O
Performance designed Compliance Monitor
- Gas sampling/conditioning not required
- Corrosive/toxic applications
- Calibration not required
- Inline/Offline Audit option available
Exceeds US-EPA CEMS Regulation requirements
- MACT & MATS ‐ PS‐18 Compliant
- Boiler MACT O₂ and CO Compliance
- Approved Zero & Span Calibration checks
Extremely Fast (<1 second) response time
Compact and simple to install
Ambient conditions from ‐40°C to 70°C
Operates in high dust/moisture applications
Laser located in controller allowing for simple signal control and diagnostic access
Off Stack/Process extractive option
Hazardous Area Div I & II options
