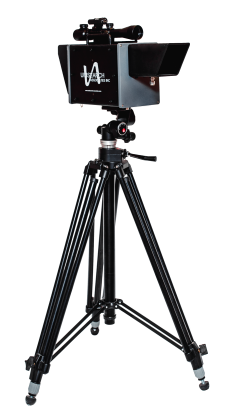

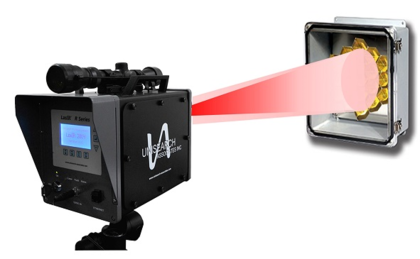

LasIR™ Portable Gas Analyzer

Portable Gas Analyzer for up to 250 m Path Length

LasIR™ Laser-based Portable Gas Monitor for Emissions Monitoring

Allows for real-time measurement of target gases in a compact, weather-resistant design suitable for open-path and ambient-air monitoring.

Compact and durable, this portable gas measurement equipment allows the user to move easily from one location to the next in order to analyze gas emissions in a variety of environments.

Onboard memory allows to save data which can then be loaded into a computer for analysis.

Characteristics

Laser

Near IR tunable diode laser Telecommunication grade lasers for longevity, reliability and availability

Detection Limits

sub-ppmv to % levels depending on species and application.
Consult the factory for your specific application.

Calibration

Factory Test results sent with every unit Internal reference cell, external portable audit module, sealed or flow through cell configurations

Dynamic Range

5 orders of magnitude

Data Storage

Internal storage & External storage via Ethernet

Dimensions

Open Path Telescope:
7"(W) x 10"(H) x 14"(L)
Retro-Reflector:
12"(W) x 12”(H) x 8"(D)

Response Time

< 1 second

Environment Conditions

‐10°C to +50°C,
5 – 100% RH,
800 – 1,200 mbar

Outputs and Networking

Ethernet, Six Dry-Contact NC & NO Status Relays

Data Logging and Displaying Software

LasIRView (with Data Review and Statistical Analysis)

Power Supply

+12 VDC; 1A
(100 – 240 VAC @50‐60Hz to +12 VDC adapter supplied)
